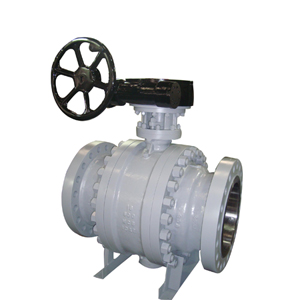

3 Pieces Trunnion Mounted Ball Valve, API 6D, Fire Safe

Short Description

Model No.: LD 13 TMBV01 Clicks: 1285

Trunnion Mounted Ball Valve manufacturer orient steel supplies 3 Pieces Trunnion Mounted Ball Valves, API 6D Design, Fire Safe,Class 150 - 2500, NPS 2" - 56", Pressure Rating: Class 150 - 2500.

Keywords: Ball Valves , Trunnion Mounted Valves , Trunnion Mounted Ball Valves .

Previous: Cast Steel Ball Valve, API6D, ANSI B16.34 Standards
Next: Aluminium Bronze Ball Valve ASTM B148 UNS C95800 4 Inch

3 Pieces Trunnion Mounted Ball Valve, API 6D, Fire Safe Key Specifications / Features

Valve Type: Trunnion Mounted Ball Valve
Ball Valve Size: NPS 2" - 56"
Pressure Rating: Class 150 - 2500
Valve Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design and Manufacturing: API 608, API 6D, BS 5351, ASME B16.34
Face-to-Face: ASME B16.10, API 6D
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: ISO 5208, API 6D
Operation Methods: Manual, Worm Gear, Electric Actuator, Pneumatic Actuator, Gas Over Oil Actuator, etc.
