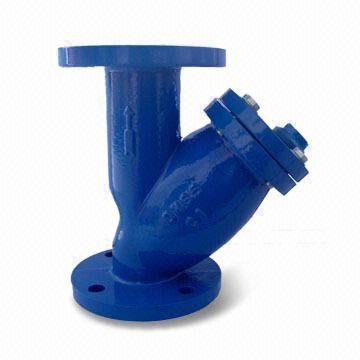

API, ANSI, DIN, BS Y-Strainers

Short Description

Model No.: LD-028-YS2 Clicks: 1337

Y Strainer Manufacturer orient steel Supplies API Y Strainers, ANSI Y Strainers, DIN Y Strainers, BS Y Strainers with cast iron, ductile iron Body and bonnet.

Keywords: Strainers .

Previous: Butterfly Valve Supplier
Next: PSL1 Pipe

API, ANSI, DIN, BS Y-Strainers Key Specifications / Features

Y Strainer Size: 1/2 to 12 inches
Nominal pressure: PN1.0/1.6mPa
Face to face dimension: ANSI B16.1, DIN3202-F1, and BS2080
Flange drilled is according to ANSI B16.1, ANSI B16.5, DIN 2501, and BS4504
Test standard: API 598
Y Strainer Body and bonnet: cast iron and ductile iron
Disc: cast iron, ductile iron, and rubber water, steam, and oil as suitable medium
Y Strainer Screen: stainless steel
Bolt and nut: carbon steel with zinc plated
Standard: ANSI, DIN3202-F1, and BS2080
