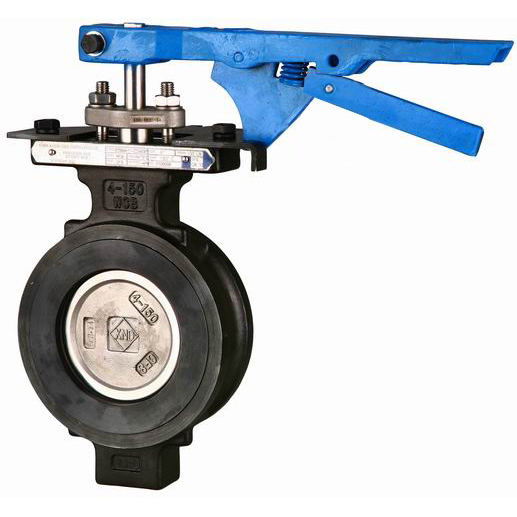

High Performance Flanged Butterfly Valves

Short Description

Model No.: LD 019-HPBT3 Clicks: 2100

High Performance Flanged Butterfly Valve Manufacturer Orientsteel Supplies Flanged Type High Performance Butterfly Valves Made from Various Sturdy Materials.

Keywords: Butterfly Valves .

Previous: Cast Iron Butterfly Valves
Next: High Performance Butterfly Valves

High Performance Flanged Butterfly Valves Key Specifications / Features

High Performance Flanged Butterfly Valves
Valve Manufacturing standards: API, ANSI, BS, DIN, JIS
Butterfly Valve Sealing: resilience-seated(PTFE, RPTFE), metal-seated
Valve Size range: from 1-1/4 inch to 64 inch (DN32mm - DN1600mm)
Pressure: 150lbs,300lbs,600lbs
Applicable tempt.: from -40 degrees C to 425 degrees C
Valve Connection: flanged, wafer(lug type included)
Valve Body materials: carbon steel, stainless steel,alloy steel
