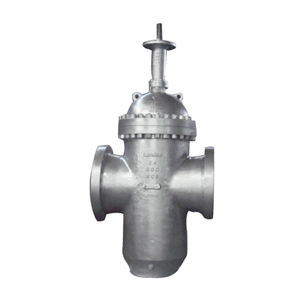

API 6D Through Conduit Expanding Gate Valves

Short Description

Model No.: LD 13 EXGV01 Clicks: 1423

Expanding Gate Valve Manufacturer orient steel supplies China API 6D Through Conduit Expanding Gate Valves with single or double expanding system, NPS 2" - 56", ANSI Class 150 - 2500

Keywords: Gate Valves , Expanding Gate Valves , Through Conduit Gate Valves .

Previous: Electric Actuated Gate Valves
Next: China DIN 3352 F4 Rising Stem Solid Wedge Gate Valves

API 6D Through Conduit Expanding Gate Valves Key Specifications / Features

Valve Type: Expanding Gate Valve
through Conduit Expanding Gate Valve is available with single expanding or double expanding system. In single expanding gate valve, the two halves of the gate are pushed against the seats in the valve closed position by having an internal stop acting on one of the two halves. In double expanding gate valve the same expansion is also obtained in the valve open position.

Gate Valve Size: NPS 2" - 56"
Pressure Rating: ANSI Class 150 - 2500
Valve Materials: WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L
Design and Manufacture: API 608, API 6D, BS 5351, ASME B16.34
Face-to-Face: ASME B16.10, API 6D
End Connection: ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: ISO 5208, API 6D.
Operation Method: Manual, Worm Gear, Electro Actuator, Pneumatic Actuator.
