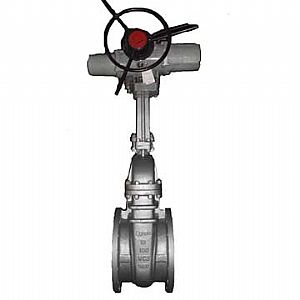

Electric Actuated Gate Valves

Short Description

Model No.: LD-GV-EA01 Clicks: 1566

Electric Actuated Gate Valve manufacturer orient steel supplies API 600 Electric Actuated Gate Valves, ASME B16.34 Electrically Operated Gate Valves,150# RF, 18”.

Keywords: Gate Valves .

Previous: Forged Steel Gate Valves
Next: API 6D Through Conduit Expanding Gate Valves

Electric Actuated Gate Valves Key Specifications / Features

Valve Type: Electric Actuated Gate Valve
Model: Electrical Actuated Gate Valve, 150# RF, 18”
Pressure Rating: Class 150～2500
Size: NPS 2"～56"
Material: A216 WCB, A352 LCB, A351 CF8, CF8M, CF3, CF3M
Design & Manufacturing Standard: API 600, ASME B16.34
Structure Length Size: API B16.10, DIN 3202
Flange Connection Size: ASME B16.5, DIN 2543-2550
Check & Experiment: API 598, BS 6755
Operator Method: Electric Actuated (Electrically Operated). Pneumatic Actuator, Handwheel and Gear Operator are also available.
