Short Description
Model No.: LD 13 TMBVGOO 01 Clicks: 1256

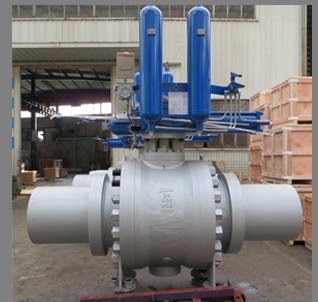

API 6D full bore trunnion mounted ball valves, butt welded, with gas over oil actuator with remote telemetry, covered with 600mm pups X60 12.7mm wall thickness.
API 6D trunnion mounted
ball valves, full bore, weld ends, gas over oil actuator with remote telemetry, c/w 600mm pups X60 12.7mm wt.
Model: 24 Inch, 900 LB.
Type: Ball Valve, Full Bore, Trunnion Mounted.
Body Material: ASTM A216 WCB.
Ball Materials: Stainless Steel SS 316L.
Stem Materials: Stainless Steel SS 316L.
Seat Materials: NYLON.
Standard: API 6D.
Ends: butt welded, Welded Ends C/W 600mm pups API 5L X60 12.7mm WT.
Class Rating: 900#.
Size: 24 Inch.
Operator: Gas Over Oil Actuator with remote telemetry.
