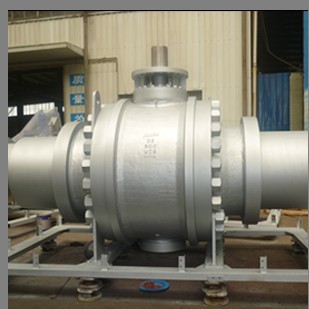

API 6D Trunnion Mounted Ball Valves, ASTM A216 WCB

API 6D Trunnion Mounted Ball Valves, ASTM A216 WCB
Short Description
 Model No.: LD 13 TMBVGOO 02    Clicks: 998
API 6D ASTM A216 WCB full bore trunnion mounted ball valves, butt welded, welded ends, covered with 600mm pups API5L X60 12.7mm wall thickness, stainless steel 316L stem and seat.
Keywords: Ball Valves , Butt Weld .
Previous: API 6D Trunnion Ball Valves, Gas Over Oil Actuated
Next: A216 WCB Top Entry Ball Valve, 300#, BW, 8 Inch, Gear

API 6D Trunnion Mounted Ball Valves, ASTM A216 WCB Key Specifications / Features

Type: Ball Valve, Full Bore, Trunnion Mounted.
Body Material: ASTM A216 WCB.
Ball Materials: Stainless Steel SS 316L.
Stem Materials: Stainless Steel SS 316L.
Seat Materials: NYLON.
Standard: API 6D.
Ends: BW, Welded Ends C/W 600mm pups API5L X60 12.7mm WT.
Class Rating: 900#.
Size: 36 Inch.
Operator: Bare Shaft, and Gas Over Oil Actuator.
