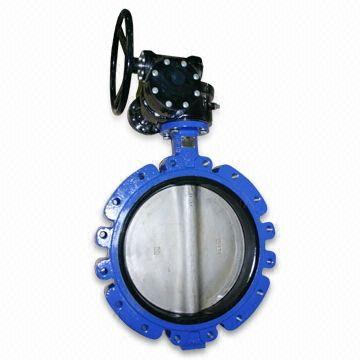

Centerline Resilient Seated Butterfly Valves

Short Description

Model No.: LD 018-BT3 Clicks: 2069

Centerline Resilient Seated Butterfly Valve Manufacturer orient steel Supplies Manual Centerline Resilient Seated Butterfly Valves with Gear Operator.

Keywords: Butterfly Valves .

Previous: Electrically Actuated Butterfly Valves
Next: Lug Butterfly Valves

Centerline Resilient Seated Butterfly Valves Key Specifications / Features

Model: Butterfly Valves with Ductile Iron Body and Gear Operator.

Valve Body materials: cast iron, ductile iron, aluminum bronze, stainless steel, carbon steel
Pressure: from PN0.6MPa to PN1.6MPa
Applicable temperature: from -40 degrees C to 230 degrees C
Flange drilling to: DIN2501, BS4504, ISO2084/2531, BS10-E, ANSI125/150, ASA125/150, AS2129 Table D/E
Valve Sizes range: from 2 inches diameter to 40 inches diameter (DN25 to DN1000mm)
