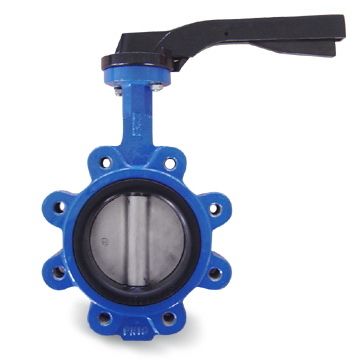

Lug Butterfly Valves

Short Description

Model No.: LD 018-BT2 Clicks: 3258

Lug Butterfly Valve Manufacturer Orientsteel Supplies Lug Type (Lug Style) Butterfly Valves, Full Lug Butterfly Valves Available in API 609 and EN593 Standards.

Keywords: Butterfly Valves .

Previous: Centerline Resilient Seated Butterfly Valves
Next: PN16 Butterfly Valves

Lug Butterfly Valves Key Specifications / Features

Model: Lug Type Butterfly Valves with Ductile Iron Body, Available in API 609 and EN593 Standards.

Valve Body materials: cast iron, ductile iron, aluminum bronze, stainless steel and carbon steel
Applicable temperature: from -40 to +230 degrees C
Valve Sizes range: from 2 to 40 inches diameter (DN25 to DN1000mm)
Design standard: API 609; EN593
Face to face: DIN3202-K1; EN558-1 20 series; BS5155; MSS SP-67
Flange drilling: DIN2501 PN10/PN16; ANSI125/150; ASA125/150; AS2129 Table D/E; BS4504, JIS10K; BS10-D/E; ISO2084/2531
Pressure test: API 598
